150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito - Galvanization Line and Hot DIP Galvanization Line
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Warranty:
12 Months
After-sales Service:
Yes
Model NO.:
HT-CGL-1250
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Raw Material
SPCC, Spcd,Cr
Capacity
60000-300000mts
Width
700-1550mm
Thickness
0.15-3.0mm
Production Capacity
10 Sets
HS Code
8543300090
Origin
China
Trademark
HiTo
Specification
2100CBM
Transport Package
Container
Speed
60-200mpm
Condition
New
Certification
ISO
Substrate
Steel
Coating
Galvanized
Type
Coating Production Line
Quick Overview
The raw material used in HiTo Galvanization Line is of high quality and has no any strange smell during use. The product is carefully examined to ensure its quality and durability. HiTo Engineering's Galvanization Line can be used in different industries to meet the needs of customers. Weifang HiTo Equipment Engineering Co.,Ltd is favored by merchants and users at home and abroad with its good reputation and service.
Product Description
Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
Hot - dip (aluminum) galvanizing line
The hot - dip (aluminum) galvanizing line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.
Continuous Galvanizing / Galvalume Line:
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
Equipment Characteristics:
1. Equipped with steel chemical cleaning or high efficiency electrolytic cleaning section, optional cleaning mode combining horizontal spray with vertical immersion spray, and unique electrolytic cleaning and ejecting mixing technology, which achieve higher current efficiency and avoid secondary oil pollution of plate out of slot , liquid surface directive overflow to ensure that the electrolyte surface rarely burst air bubble, and high safety of system service.
2. The combination of non-oxidizing (NOF) and radiant tube heating (RTH) has the advantages of fast heating speed, high thermal efficiency, more finer double cross-limiting air-fuel ratio control method is adopted , special refractory material is selected, which can significantly improve the insulation effect and service life of the high temperature zone.
3. After annealing, the strip cooling adopts protective gas cycling spray cooling way with variable frequency speed control. The use of high-pressure high-speed jet, strip cooling is quick and uniform, which can accurately control the process temperature of strip entering into zinc pot.
4. Straightening machine and finishing machine can effectively improve the finished product surface and shape quality, and improve product coating and cold crushing mechanical properties.
5. Adopt flue gas waste heat recovery technology, recover low temperature flue gas waste heat through the flue gas - water heat exchange or waste heat steam boiler, supply the recovered waste heat to heat liquid cleaning section , thus to improve the utilization of heat and reduce product energy consumption.
6. The use of jet-type ceramic induction heating zinc pot, with fast heating, uniform temperature and alloy composition, long service life and less slag and other advantages. The furnace nose is equipped with wet nitrogen and circulating zinc pump device inside, which can significantly improve the strip surface accuracy, especially suitable for coated substrate quality requirements of home appliances .
7. The coating thickness measuring instrument can be used to monitor the actual thickness of the coating in real time and guide the precise adjustment of the air knife.
8. The use of fingerprint-resistant coating machine with fast switching device can effectively optimize the equipment layout of process section, reduce the investment in plant construction, and obtain accurate organic or composite coating on the strip surface.
9. Control system adopts vector frequency control, CPC and EPC correction, field bus control technologies, with good man-machine interface and stable and reliable equipment service.
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()

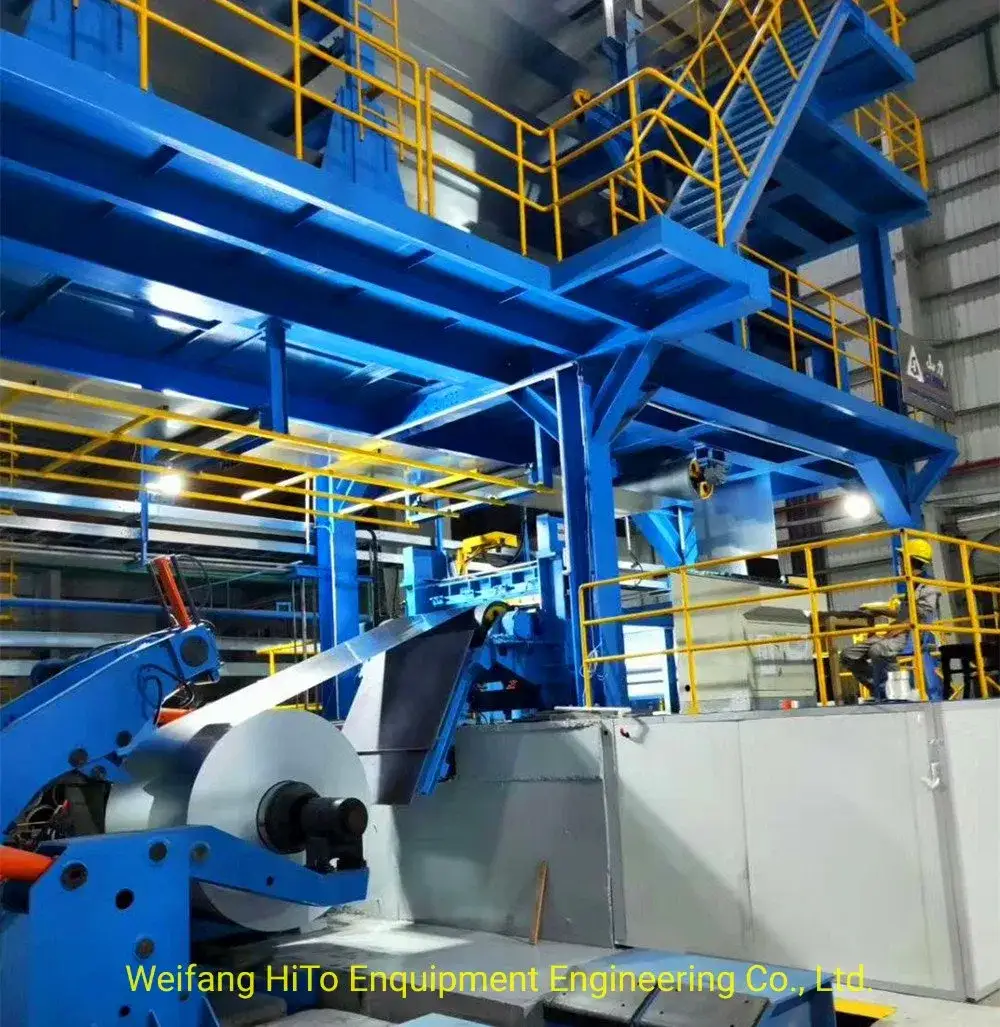

My factory
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
Recently, we have undertaken the site of the project
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
![150000 Tons Continuous Cold Rolled Carbon Steel Hot DIP Galvanization Line Supplier Hito]()
FAQ
Give us the connected electrical load of machine in KW
A: 2500-4500 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
Hot - dip (aluminum) galvanizing line
The hot - dip (aluminum) galvanizing line is a set of equipments that plating a layer of zinc or aluminum alloy on the strip while in high temperature. The production line was composed of uncoiler, welder, storage tank, degreasing section equipments, continuous annealing furnace, zinc pot, air knife, skin pass, tension leveler, oiler, shear, recoiler and other equipments.
| Cold rolled low carbon steel: SPCC, SPCD, JIS G 3141 | ||
| Thickness: | 0.12-2.5mm | |
| Width: | 700-1550mm | |
| Coating type: | GI, GA, GF | 30-300g/m2 |
| Product grade: | CQ,DQ,G550 | JIS G 3302 |
| Line Max.speed: | Entry 260mpm, processing 200mpm, exit 260mpm | |
| Capacity: | 60,000-300,000 MT/Y | |
| Energy saving: | Heat recovery system from waste gas | |
Continuous Galvanizing / Galvalume Line:
Equipment Characteristics:
1. Equipped with steel chemical cleaning or high efficiency electrolytic cleaning section, optional cleaning mode combining horizontal spray with vertical immersion spray, and unique electrolytic cleaning and ejecting mixing technology, which achieve higher current efficiency and avoid secondary oil pollution of plate out of slot , liquid surface directive overflow to ensure that the electrolyte surface rarely burst air bubble, and high safety of system service.
2. The combination of non-oxidizing (NOF) and radiant tube heating (RTH) has the advantages of fast heating speed, high thermal efficiency, more finer double cross-limiting air-fuel ratio control method is adopted , special refractory material is selected, which can significantly improve the insulation effect and service life of the high temperature zone.
3. After annealing, the strip cooling adopts protective gas cycling spray cooling way with variable frequency speed control. The use of high-pressure high-speed jet, strip cooling is quick and uniform, which can accurately control the process temperature of strip entering into zinc pot.
4. Straightening machine and finishing machine can effectively improve the finished product surface and shape quality, and improve product coating and cold crushing mechanical properties.
5. Adopt flue gas waste heat recovery technology, recover low temperature flue gas waste heat through the flue gas - water heat exchange or waste heat steam boiler, supply the recovered waste heat to heat liquid cleaning section , thus to improve the utilization of heat and reduce product energy consumption.
6. The use of jet-type ceramic induction heating zinc pot, with fast heating, uniform temperature and alloy composition, long service life and less slag and other advantages. The furnace nose is equipped with wet nitrogen and circulating zinc pump device inside, which can significantly improve the strip surface accuracy, especially suitable for coated substrate quality requirements of home appliances .
7. The coating thickness measuring instrument can be used to monitor the actual thickness of the coating in real time and guide the precise adjustment of the air knife.
8. The use of fingerprint-resistant coating machine with fast switching device can effectively optimize the equipment layout of process section, reduce the investment in plant construction, and obtain accurate organic or composite coating on the strip surface.
9. Control system adopts vector frequency control, CPC and EPC correction, field bus control technologies, with good man-machine interface and stable and reliable equipment service.
My factory
Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 2500-4500 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Introduction
As a new type of company, Weifang HiTo Equipment Engineering Co.,Ltd integrates scientific research, production, processing and sales. are our major products. Our company has a first-class after-sales service team of professional technology and a set of standardized service management systems to supply the best quality service to the customers.
