Coils Color Coating Line for PPGI PPGL / Continuous Colour Coating Line - Color Coating Line and Ccl
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Warranty:
12 Months
After-sales Service:
Yes
Model NO.:
HT-1250
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Coils
Steel, Alu. Ss, Cr, Gi, Gl
Delivery Time
3-5 Months
Raw Material
Gi, Gl, Al, Ss
Capacity
30000-300000tons
Width
700-1550mm
Thickness
0.15-1.5mm
Production Capacity
20 Sets/ Year
HS Code
8479819000
Origin
China
Trademark
HiTO
Specification
1500CBM
Transport Package
Containers
Speed
30-200mpm
Condition
New
Certification
ISO
Substrate
Steel
Coating
Coil Coating
Type
Coating Production Line
Quick Overview
Our provided HiTo Ccl is prepared using premium quality raw materials. The product has the advantages of good quality and excellent performance. Ccl, one of HiTo Engineering's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields. Weifang HiTo Equipment Engineering Co.,Ltd's Ccl has super quality and competitive price in Ccl industry.
Product Description
Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
EQUIPMENT PARAMETERS:
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Outer diameter of steel coil: φ800-2000mm
- Process speed: 30 - 200m/min
- Coating thickness : 5-25μm for the single-layer dry film on the front face (regulated as required) 5-15μm for the single-layer dry film on the back face (regulated as required)
- Production capacity: 30,000-300,000 Tonnes/year
- Energy type: electricity, natural gas, liquefied petroleum gas, etc.

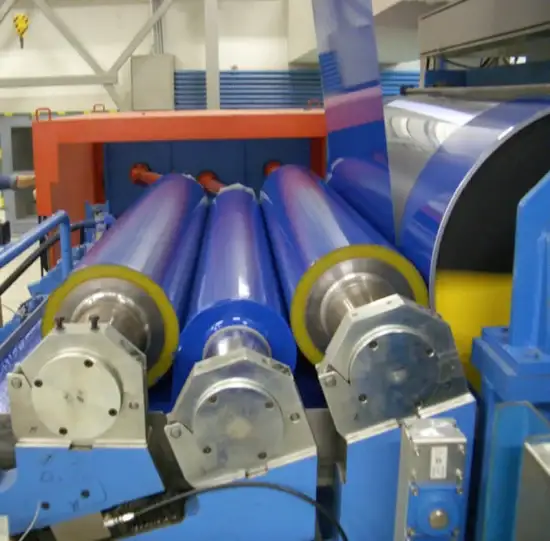

The color coating unit adopts double-coating double-baking model and hot air circulation heating process.
This is my company completed DUBAI Industry City color coating line project:
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |
Factory
Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Information
Weifang HiTo Equipment Engineering Co.,Ltd is a company with the location in is one of our key products. HiTo Engineering has been constantly providing high-quality and excellent services for customers to meet their demand.
We are willing to go hand in hand with you to create a better future.
