    Coils
    Steel, Alu. Ss, Cr, Gi, Gl
    Delivery Time
    3-5 Months
    Width
    700-1550mm
    Thickness
    0.15-1.5mm
    Production Capacity
    20 Sets/ Year
    Origin
    China
    Trademark
    HiTO
    Specification
    1600CBM
    Transport Package
    Containers
    Speed
    30-200mpm
    Condition
    New
    Certification
    ISO
    Substrate
    Steel
    Coating
    Coil Coating
    Type
    Coating Production Line

    Quick Overview


    HiTo Ccl is accurately manufactured using state-of-the-art production technology. Ccl produced by Weifang HiTo Equipment Engineering Co.,Ltd is proved to have good performances and long service life. HiTo Engineering's Ccl is widely used in various scenes. With so many advantages, the product has a vast application prospect.


    Product Description

    Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.

    The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.


    EQUIPMENT PARAMETERS:

    1. Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
    2. Raw material:cold rolled strip,GI,GL,aluminum strip
    3. Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
    4. Outer diameter of steel coil: φ800-2000mm
    5. Process speed: 30 - 200m/min
    6. Coating thickness : 5-25μm for the single-layer dry film on the front face (regulated as required)                                                                      5-15μm for the single-layer dry film on the back face (regulated as required)
    7. Production capacity: 30,000-300,000 Tonnes/year
    8. Energy type: electricity, natural gas, liquefied petroleum gas,  etc.

    The color coating unit adopts double-coating double-baking model and hot air circulation heating process.

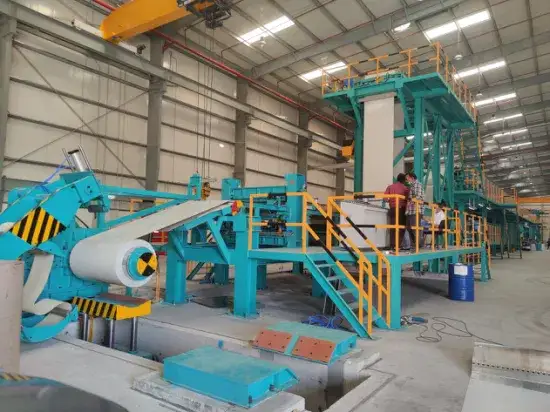

    This photo is my Dubai Industry City color coating line project:

    Coils Pattern Coating/Printing Line Ccl
    Process Flow of the color coating line:

    Coils Pattern Coating/Printing Line Ccl
    We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.

    Coils Pattern Coating/Printing Line Ccl

    We offer the following services to our customers:

    · Project feasibility
    · Equipment design
    · Installation and commissioning
    · Technology transfer
    · Training of operators and production personnel
    · Product testing
    · Downstream Equipment
    · Ongoing technical support


    Nominal Thickness Allowable Deviation of Thickness in Case of the Following Thicknesses
    General Precision PT.A High Precision PT.B
    ≤1200 >1200-1500 ≤1200 >120-1500
    0.20-0.40 ±0.05 ±0.06 ±0.03 ±0.04
    >0.40-0.60 ±0.06 ±0.07 ±0.04 ±0.05
    >0.60-1.0 ±0.07 ±0.08 ±0.05 ±0.06


    Factory


    Coils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line Ccl
    Recently, we have undertaken the site of the project

    Coils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line CclCoils Pattern Coating/Printing Line Ccl

    FAQ

     Give us the connected electrical load of machine  in KW
    A:  850-1000 Kw

    We insist all program software and HMI text  should be in English language not in chinese.
    A: Yes. All program software and HMI text are English language.

    Can I choose a configuration
    A:Yes,sure
