Color Coating Line Galvanized Steel Coil Cold Roll Steel Aluminum - Polyvinylidene Fluoride Coating Line and Color Painting Line
Product Overview
With smooth and elegant surface, Polyvinylidene Fluoride Coating Line is of great performance for clients. The quality assurance program followed by us ensures that the product is in complete compliance with the international quality standards. HiTo Engineering's Polyvinylidene Fluoride Coating Line can be used in many industries. Weifang HiTo Equipment Engineering Co.,Ltd owns competitive production with a strong brand appeal.
Product Description
Weifang HiTo Equipment Engineering Co.,Ltd
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip, 3-15Tons
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Process speed: 30 - 200m/min
- Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |

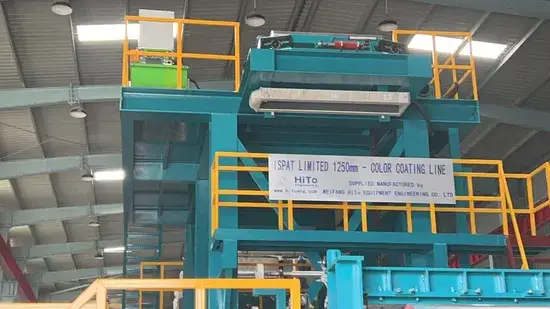

Factory
Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Advantages
Weifang HiTo Equipment Engineering Co.,Ltd is a company in We mainly produce Our company always adheres to our tenet of 'people-oriented, technological innovation'. During our business operation, we actively pursue excellence and emphasize the relation between cooperation and mutual benefit. Now we are looking forward to working with new and old customers in the industry to seek for success. Our company has a group of experienced and skilled production experts, providing strong technical support for the production of products. According to different needs of customers, HiTo Engineering is capable of providing reasonable, comprehensive and the most cost-effective solutions for customers.
We provide you with high-quality products and look forward to your inquiry.
