Continuous Color Coating Production Line for Galvanized Steel Ccl - Polyvinylidene Fluoride Coating Line and Color Painting Line
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Warranty:
12 Months
After-sales Service:
Yes
Model NO.:
CCL
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Production Capacity
20 Sets/ Year
HS Code
8479819000
Origin
China
Trademark
HiTo
Specification
1600CBM
Transport Package
Container
Condition
New
Certification
ISO
Substrate
Steel
Coating
Coil Coating
Type
Coating Production Line
Quick Detail
Strictly selected raw materials: HiTo Color Painting Line is made from top grade raw materials which are all well-selected and then are quickly put into precision production. The competitive advantages of this product are as follows: long service life, good performance and excellent quality. Weifang HiTo Equipment Engineering Co.,Ltd can transform innovation into innovative Color Painting Line products and services.
Product Description
Weifang HiTo Equipment Engineering Co.,Ltd
Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
The color coating unit adopts double-coating double-baking model and hot air circulation heating process. The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip, 3-15Tons
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Process speed: 30 - 200m/min
- Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |
Factory

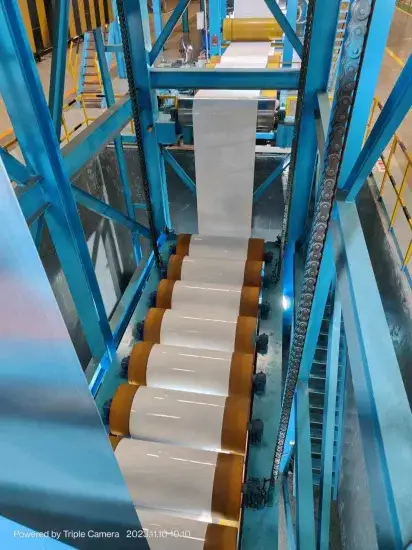

Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Introduction
Weifang HiTo Equipment Engineering Co.,Ltd (HiTo Engineering) is a company that integrates R&D, processing and production, andmainly focuses on sales of We provide regular tracking service for every customer and deal with every customer's comments and suggestions carefully.
We look forward to working with you to move towards a more brilliant era.
