Hito 2020 mm Continuous Coil Painting Line - Polyvinylidene Fluoride Coating Line and Color Painting Line
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Warranty:
12 Months
After-sales Service:
Yes
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Production Capacity
20 Sets/ Year
HS Code
8479819000
Origin
China
Trademark
HiTO
Specification
1600CBM
Transport Package
Container
Condition
New
Certification
ISO
Substrate
Steel
Coating
Coil Coating
Type
Coating Production Line
Product Overview
Supported by professional technical team, our Hito 2020 mm Continuous Coil Painting Line receive much more high reputation than before. Each product meets the quality standards through strict quality test. Weifang HiTo Equipment Engineering Co.,Ltd has proficiency in quality control systems.
Product Description
Weifang HiTo Equipment Engineering Co.,Ltd
Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
The color coating unit adopts double-coating double-baking model and hot air circulation heating process. The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip, 3-15Tons
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Process speed: 30 - 200m/min
- Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |
Factory

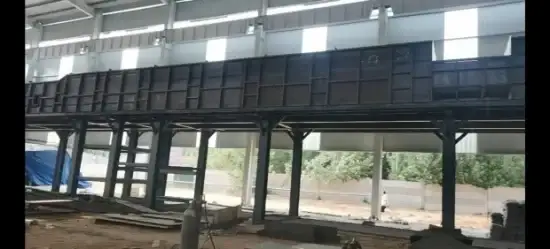

Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Advantages
Weifang HiTo Equipment Engineering Co.,Ltd is a enterprise that integrates production and sales of products. The main product is HiTo Engineering runs a high-quality logistics management system to achieve efficient transportation of products. Besides, we run a comprehensive pre-sales, sales and after-sales service system to solve various problems in time for customers.
We are sincerely looking forward to establishing a long-term cooperation with all customers!
