Hito 60000 Tons/Y Continuous Roller Coating Machine with Substrate of Aluminium and Galvanised Steel - Polyvinylidene Fluoride Coating Line and Color Painting Line
Quick Detail
The specifications of HiTo Hito 60000 Tons/Y Continuous Roller Coating Machine with Substrate of Aluminium and Galvanised Steel are ensured by finest techniques. The outstanding feature of this product lies in high performance. The Hito 60000 Tons/Y Continuous Roller Coating Machine with Substrate of Aluminium and Galvanised Steel developed by HiTo Engineering is widely used in various fields. Weifang HiTo Equipment Engineering Co.,Ltd's sales network is extensive.
Product Description
Weifang HiTo Equipment Engineering Co.,Ltd
The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.
- Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
- Raw material:cold rolled strip,GI,GL,aluminum strip, 3-15Tons
- Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
- Process speed: 30 - 200m/min
- Production capacity: 30,000-300,000 Tonnes/year
Process Flow of the color coating line:
We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.
We offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
| Nominal Thickness | Allowable Deviation of Thickness in Case of the Following Thicknesses | |||
| General Precision PT.A | High Precision PT.B | |||
| ≤1200 | >1200-1500 | ≤1200 | >120-1500 | |
| 0.20-0.40 | ±0.05 | ±0.06 | ±0.03 | ±0.04 |
| >0.40-0.60 | ±0.06 | ±0.07 | ±0.04 | ±0.05 |
| >0.60-1.0 | ±0.07 | ±0.08 | ±0.05 | ±0.06 |

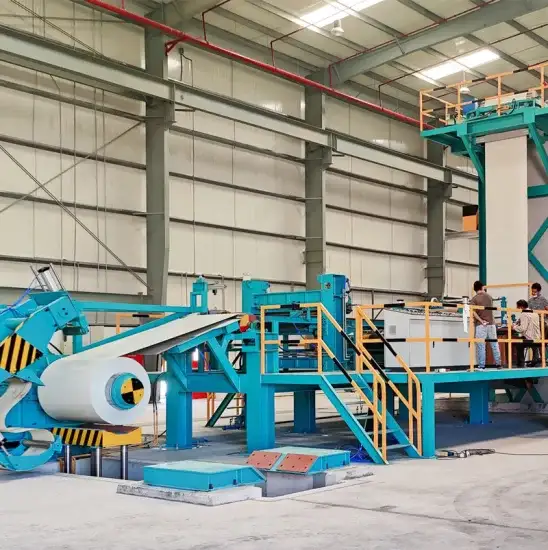

Factory
Recently, we have undertaken the site of the project
FAQ
Give us the connected electrical load of machine in KW
A: 850-1000 Kw
We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.
Can I choose a configuration
A:Yes,sure
Company Introduction
HiTo has made great achievements in Color Painting Line industry. Our factory faithfully implements the management systems of ISO 9001 and ISO 14001 to manufacture products. These ISO management systems not only guarantee the products' quality but also ensure that the products including Color Painting Line are friendly to the environment. The absolute goal of our environmental work is that our industrial processes should have the lowest possible impact on the environment. Our strategy is to stay one step ahead of official requirements by implementing an active environmental management system and continuously improve our environmental standards.
Welcome new and old customers to negotiate business.
