Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Warranty:

12 Months

After-sales Service:

Yes

Model NO.:

HT-1250

Inquiry

Write a Review

Coils

Steel, Alu. Ss, Cr, Gi, Gl

Delivery Time

3-5 Months

Width

700-1550mm

Thickness

0.15-1.5mm

Production Capacity

20 Sets/ Year

Origin

China

Trademark

HiTO

Specification

1600CBM

Transport Package

Containers

Speed

30-200mpm

Condition

New

Certification

ISO

Substrate

Steel

Coating

Coil Coating

Type

Coating Production Line

Quick Overview

The manufacturing of HiTo Pattern PPGI Production Line/Coils Printing Line is carried out by a professional team. The implementation of the quality management system ensures that the product complies with international standards. The good quality and favorable price of Pattern PPGI Production Line/Coils Printing Line as well as excellent service from Weifang HiTo Equipment Engineering Co.,Ltd satisfy each client.

Product Description

Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets.

The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none.

EQUIPMENT PARAMETERS:

Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
Raw material:cold rolled strip,GI,GL,aluminum strip
Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
Outer diameter of steel coil: φ800-2000mm
Process speed: 30 - 200m/min
Coating thickness : 5-25μm for the single-layer dry film on the front face (regulated as required) 5-15μm for the single-layer dry film on the back face (regulated as required)
Production capacity: 30,000-300,000 Tonnes/year
Energy type: electricity, natural gas, liquefied petroleum gas, etc.

The color coating unit adopts double-coating double-baking model and hot air circulation heating process.

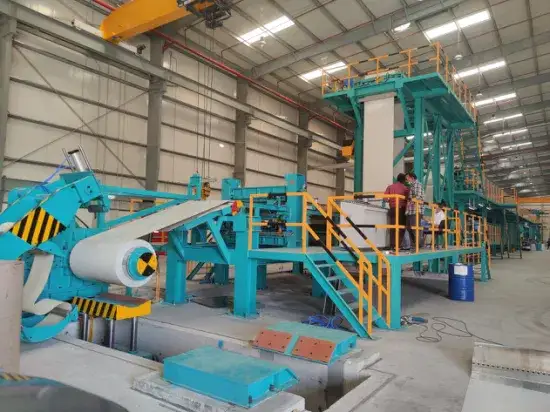

This photo is my Dubai Industry City color coating line project:

Pattern PPGI Production Line/Coils Printing Line

Process Flow of the color coating line:

Pattern PPGI Production Line/Coils Printing Line

We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on.

Pattern PPGI Production Line/Coils Printing Line

We offer the following services to our customers:

· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support

Nominal Thickness	Allowable Deviation of Thickness in Case of the Following Thicknesses
	General Precision PT.A		High Precision PT.B
	≤1200	>1200-1500	≤1200	>120-1500
0.20-0.40	±0.05	±0.06	±0.03	±0.04
>0.40-0.60	±0.06	±0.07	±0.04	±0.05
>0.60-1.0	±0.07	±0.08	±0.05	±0.06

Factory

Recently, we have undertaken the site of the project

Pattern PPGI Production Line/Coils Printing Line

FAQ

Give us the connected electrical load of machine in KW
A: 850-1000 Kw

We insist all program software and HMI text should be in English language not in chinese.
A: Yes. All program software and HMI text are English language.

Can I choose a configuration
A:Yes,sure
