Compact Color Coating Line

Low speed, low production capacity, low cost compact color coating line
HiTo manufacture equipment and engineering by self
Processing speed: 30-60M/Min
Capacity: 30000-60000 Tons per year
Model: One coating, one baking
Paint: PVDF, PE, HDP, SMP, PU, SDP, Epoxy
Raw Material:
  • HT-C-CCL01

  • HiTo

  • 847981

Product Description


1.Raw material of base coils: electro-galvanized coils, hot-dip galvanized coils, hot dip Al-Zn coils, cold-rolled steel coils , Aluminum Coils (GE, GI, GL, CR, AL)etc.

2.Thickness of strip steel: 0.12-2.0mm, Width of strip steel: 600-1600mm

3.Process speed: 30 - 200m/min

4.Coating thickness : 5-20μm for the single-layer dry film

5.Production capacity: 30,000-300,000 Tones/year

6.Energy type: electricity, natural gas, liquefied petroleum gas, etc.

Features:All equipment manufactured by own factory,excellent quality supervision, fast delivery, short installation time, reducing costs for customers

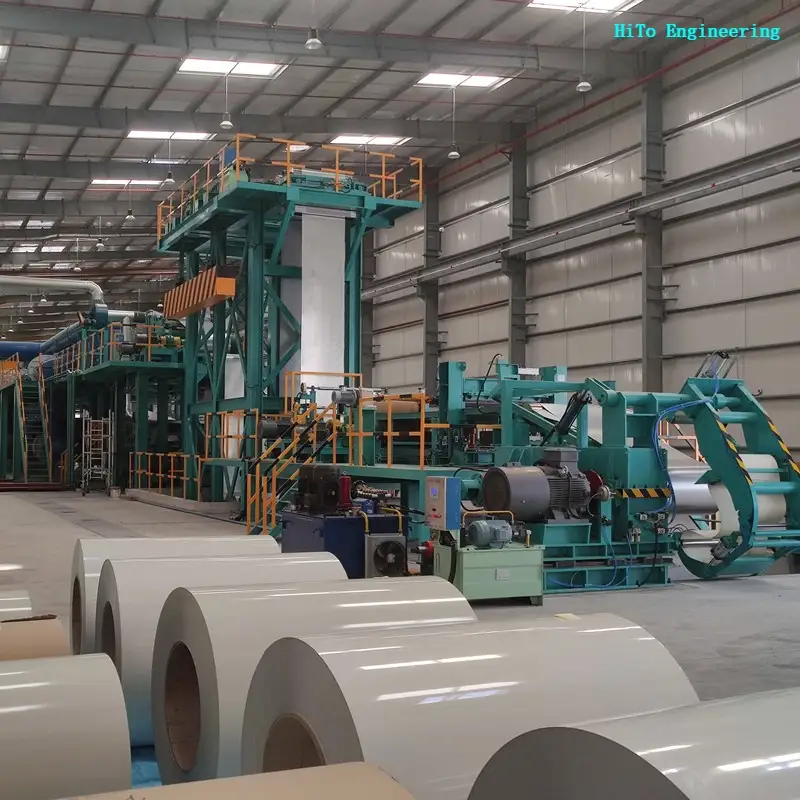

color painting line


The competitive advantage of HiTo stems from being able to offer the world’s best coil costing equipment technology at competitive pricing, with the backup of full & ongoing specialist support.
