HT-CCL
HiTo
CCL-1250

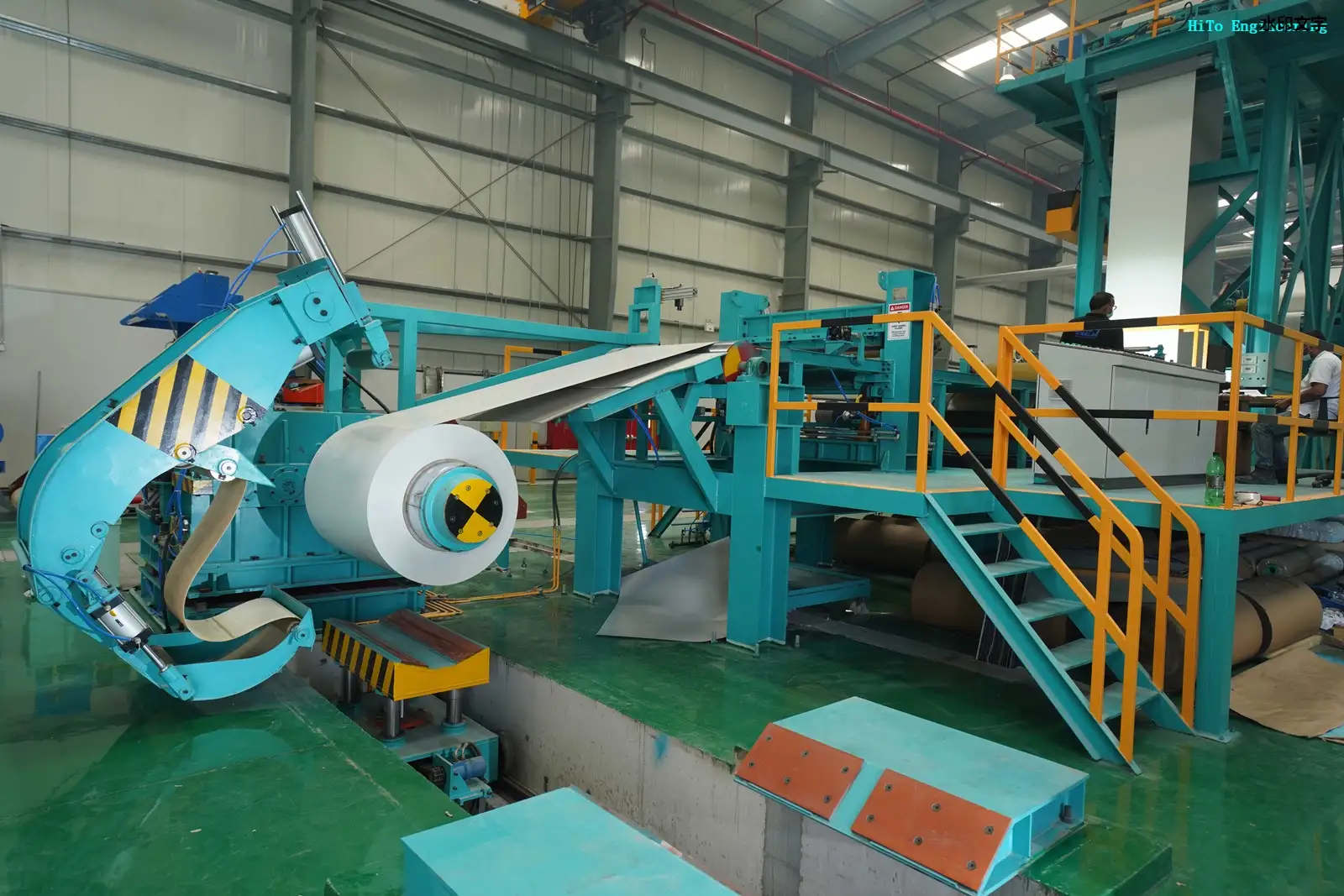

The color coating line adopts double-coating double-baking or one-coating one-baking, three-coating three baking model and hot air circulation heating process.
Function optional: added pattern printing unit, film hot laminating, tension leveler, embossing unit
Industry: building materials, decorative materials, home appliance panels
Material of base plate: EGI, hot-dip galvanized coils, hot dip 55%Al-Zn coils, cold rolled steel coils , aluminum coils etc.
Thickness of strip steel: 0.15-1.5mm, Width of strip steel: 600-1600mm
Process speed: 30 - 200MPM
Production capacity: 30,000-250,000 Tons/year
Types of Coating Method | Type of Coating | Thickness of Coating μm | Hardness of pencil | 60º Glossiness (%) | Bend弯 曲 | Reversed impact (J) | Salt Spray Resistance (h) | Remark | |
Thickness ≤0.8mm 1800, T-bend | Thickness>0.8mm 1800, T-bend | ||||||||
Double-coating double-baking | Polyester |
≥20 |
≥HB |
30-70 |
≤3T |
900 |
≥6 |
≥500 | Applicable to general buildings |
Silicone modified polyester |
≥750 | ||||||||
Polyvinylidene fluoride |
≥1000 | Applicable to buildings having higher requirements on durability | |||||||
One-coating one-baking | Fluoropolymer | ≥10 | ≥HB | 30-70 | ≤3T | 900 | ≥6 | ≥250 | Applicable to temporary buildings |
Color coating line process flowing
HiTo E&E offer the following services to our customers:
· Project feasibility
· Equipment design
· Installation and commissioning
· Technology transfer
· Training of operators and production personnel
· Product testing
· Downstream Equipment
· Ongoing technical support
Welcome to vist Dubai CCL worksite
