Product Description

Innovation is our Mission. It is key for providing our customers with a competitive advantage. Our innovative engineering team applies our technology to offer a tailor made solution to your individual requirements consistent with your preferences, production goals and budgets. The competitive advantage of HiTo stems from being able to offer the world's best technology at competitive pricing, with the backup of full & ongoing specialist support. In short, we offer a world class supply solution that is second to none. EQUIPMENT PARAMETERS:

1. Material of base plate: electro-galvanized plate, hot-dip galvanized plate, hot dip Al-Zn plate, cold-rolled steel plate , Aluminum Coils etc.
2. Raw material:cold rolled strip,GI,GL,aluminum strip
3. Thickness of strip steel: 0.12-1.8mm, Width of strip steel: 600-1650mm
4. Outer diameter of steel coil: φ800-2000mm
5. Process speed: 30 - 200m/min
6. Coating thickness : 5-25μm for the single-layer dry film on the front face (regulated as required)                                                                      5-15μm for the single-layer dry film on the back face (regulated as required)
7. Production capacity: 30,000-300,000 Tonnes/year
8. Energy type: electricity, natural gas, liquefied petroleum gas,  etc.

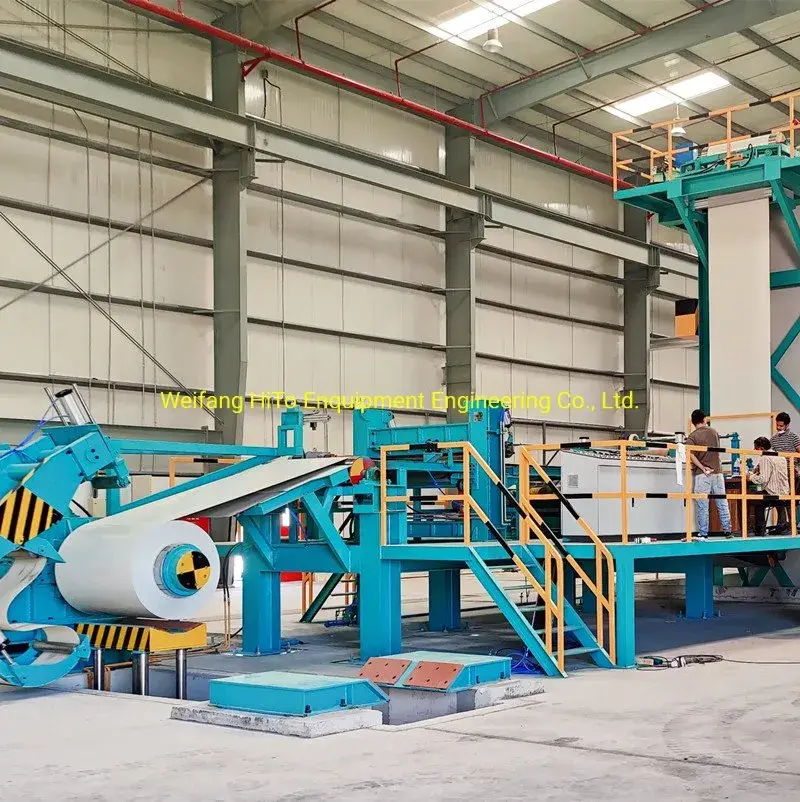

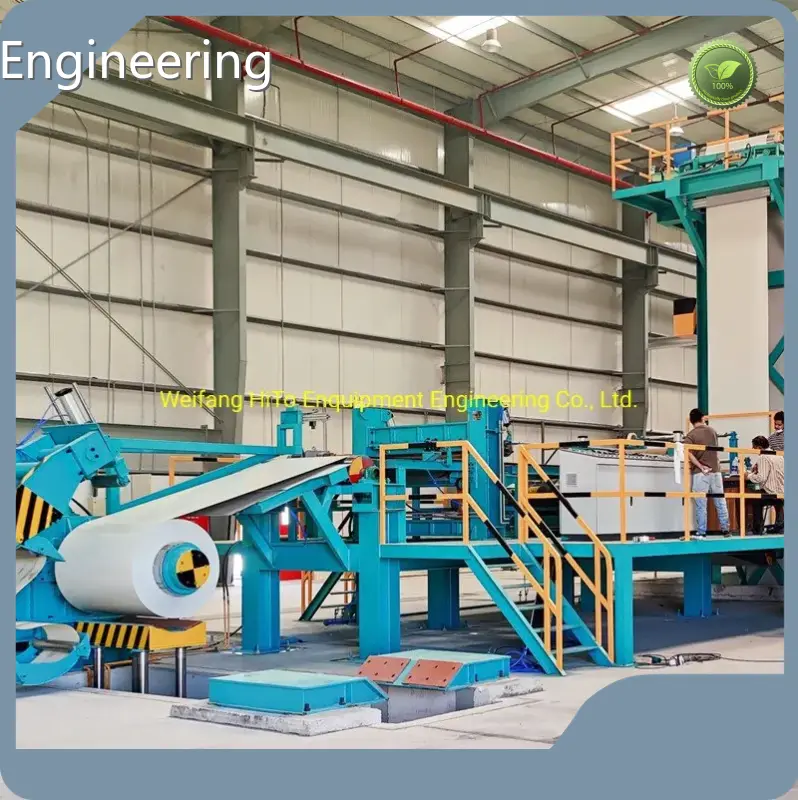

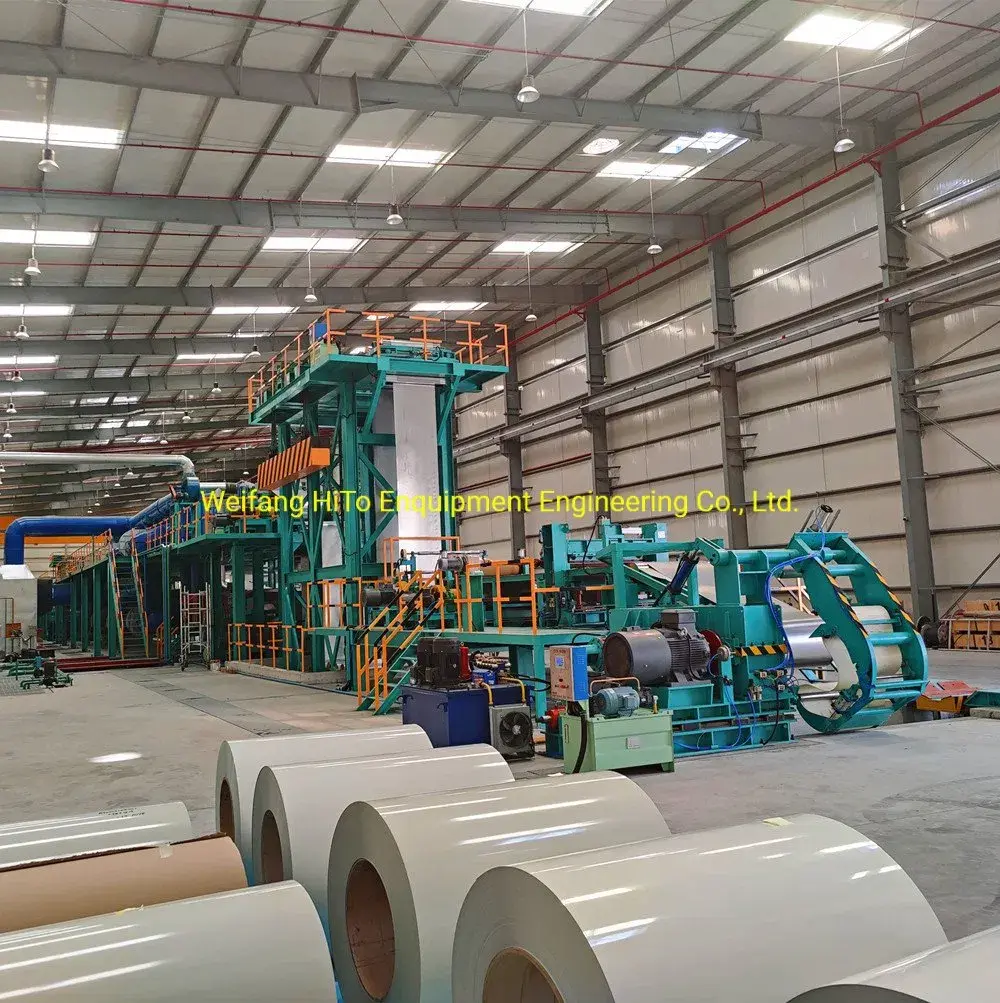

The color coating unit adopts double-coating double-baking model and hot air circulation heating process. This photo is my Dubai Industry City color coating line project: Process Flow of the color coating line: We provide Pattern Printing System to produce pattern color coated steel, like the mood grain, marble/brick pattern and so on. We offer the following services to our customers: · Project feasibility · Equipment design · Installation and commissioning · Technology transfer · Training of operators and production personnel · Product testing · Downstream Equipment · Ongoing technical support

Nominal Thickness	Allowable Deviation of Thickness in Case of the Following Thicknesses
	General Precision PT.A		High Precision PT.B
	≤1200	>1200-1500	≤1200	>120-1500
0.20-0.40	±0.05	±0.06	±0.03	±0.04
>0.40-0.60	±0.06	±0.07	±0.04	±0.05
>0.60-1.0	±0.07	±0.08	±0.05	±0.06

  Factory Recently, we have undertaken the site of the project FAQ  Give us the connected electrical load of machine  in KW A:  850-1000 Kw We insist all program software and HMI text  should be in English language not in chinese. A: Yes. All program software and HMI text are English language. Can I choose a configuration A:Yes,sure

Company Advantages

· The quality HiTo Engineering colour coating line specification is produced with excellent workmanship and finishing.

· This product has the advantages of long service life and excellent performance.

· Weifang HiTo Equipment Engineering Co.,Ltd's service team is dedicated to providing you with any assistance for colour coating line specification products.

Company Features

· As a leading domestic manufacturer of colour coating line specification, Weifang HiTo Equipment Engineering Co.,Ltd is consistently improving and re-expanding in scale.

· We have cultivated a team of professionals who are responsible for customer service. They have well-trained and deep knowledge about the products in the colour coating line specification industry. This enables them to respond actively and timely to any customers' inquiries and questions.

· Corporate sustainability is integrated into every facet of our work. From volunteerism and financial donations to reducing the environmental impact and providing sustainability services, we ensure that all our employees have access to corporate sustainability.

Application of the Product

The colour coating line specification developed by our company can be applied in different fields.

HiTo Engineering always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
